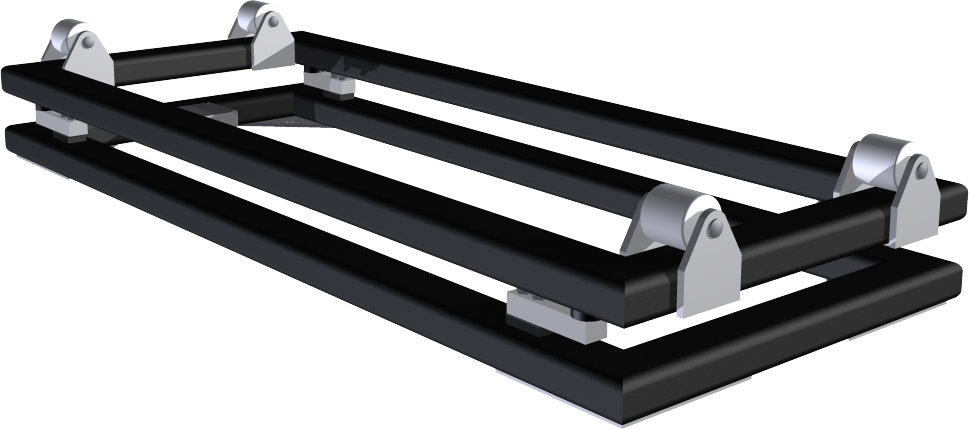

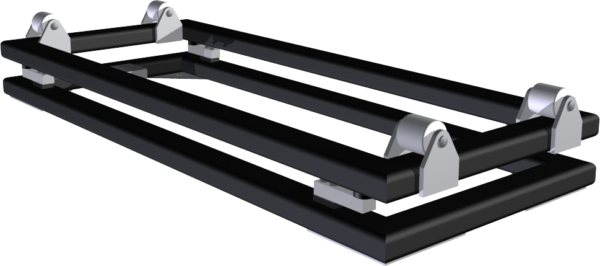

C3600P Precision Ton Container Scale


The Eagle Microsystems Model C3600P Precision Electronic Single Ton Container scale is designed specifically for the water and wastewater industry. It is built with a rugged, corrosion-protected, steel box frame for years of reliable service. Weighing is accomplished using four precision, stainless steel, strain gage load cells to insure accuracy in excess of 0.1% of rated load. In addition, overload stops and all stainless steel hardware are standard on every scale. The scale is capable of weighing either chlorine or sulfur dioxide containers with a maximum capacity of 4000 lbs (1800 kg). If you are looking for the optimum device to control your expensive chlorine inventory, your only choice is the C3600P!


  • Four sealed, precision, stainless steel load cells
  • Better than 0.1% accuracy
  • No pivots or bearings that require maintenance
  • Overload stops and shock isolators for optimum performance
  • Rugged steel box frame construction with acrylic urethane enamel finish
  • Low profile (7 inches high), no scale pit required
  • Built-in roller trunnions never require greasing
  • All stainless steel hardware and load cells
