EI-4000 Multi-Channel Weight Indicator

Overview

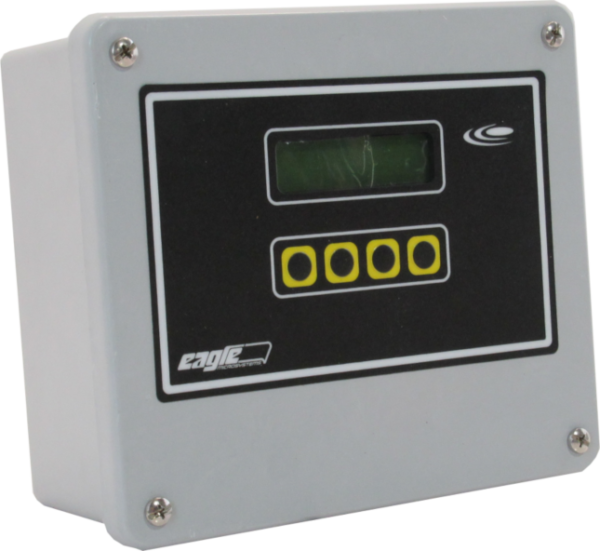

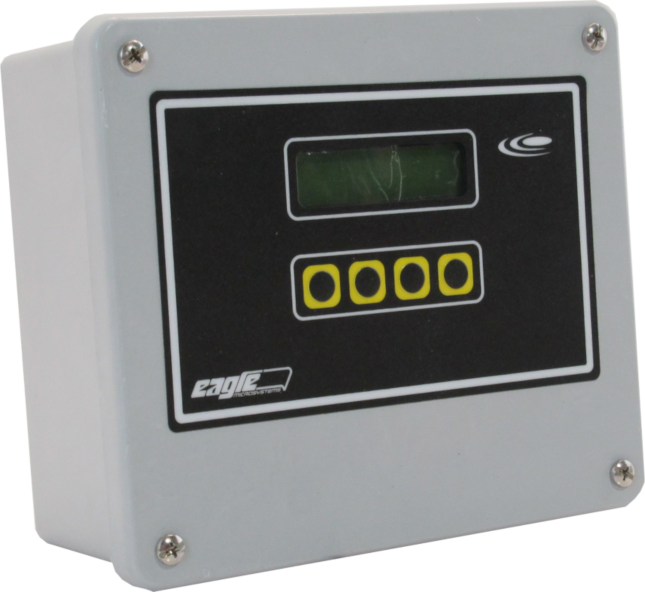

The Eagle Microsystems EI-4000 is a precision multi channel indicator intended to provide many advanced features while providing cost savings through the use of a single indicator for multiple scales.  The instrument provides a 2 line 16 character display manipulated through a simple user-friendly 4 pushbutton interface. Amount used, amount remaining, gross weight, tare weight, net remaining, daily usage, rate of feed, and days until empty are all displayed and tracked by the indicator. Daily usage over the last 31 days is also available. A total of four scales can be monitored by this indicator with four 4-20 mA dc outputs provided, one for each scale.

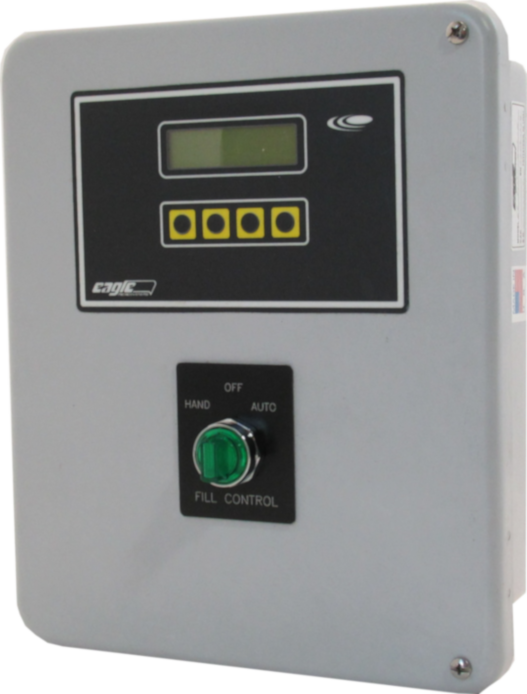

The EI-4000 can also be provided in a tank level management configuration, allowing automatic refill of tanks and other containers. This indicator an also be used to monitor other scale systems, permitting the use of it’s features with instruments that may not share them.


Features

    • Simple, easy to use pushbutton interface
    • 2-line 16 character backlit LCD
    • Field programmable
    • NEMA 4X enclosure
    • On-board diagnostics
    • RS-232, RS-485, Modbus RTU
      standard

Download a PDF Data Sheet
Download a Product Manual
