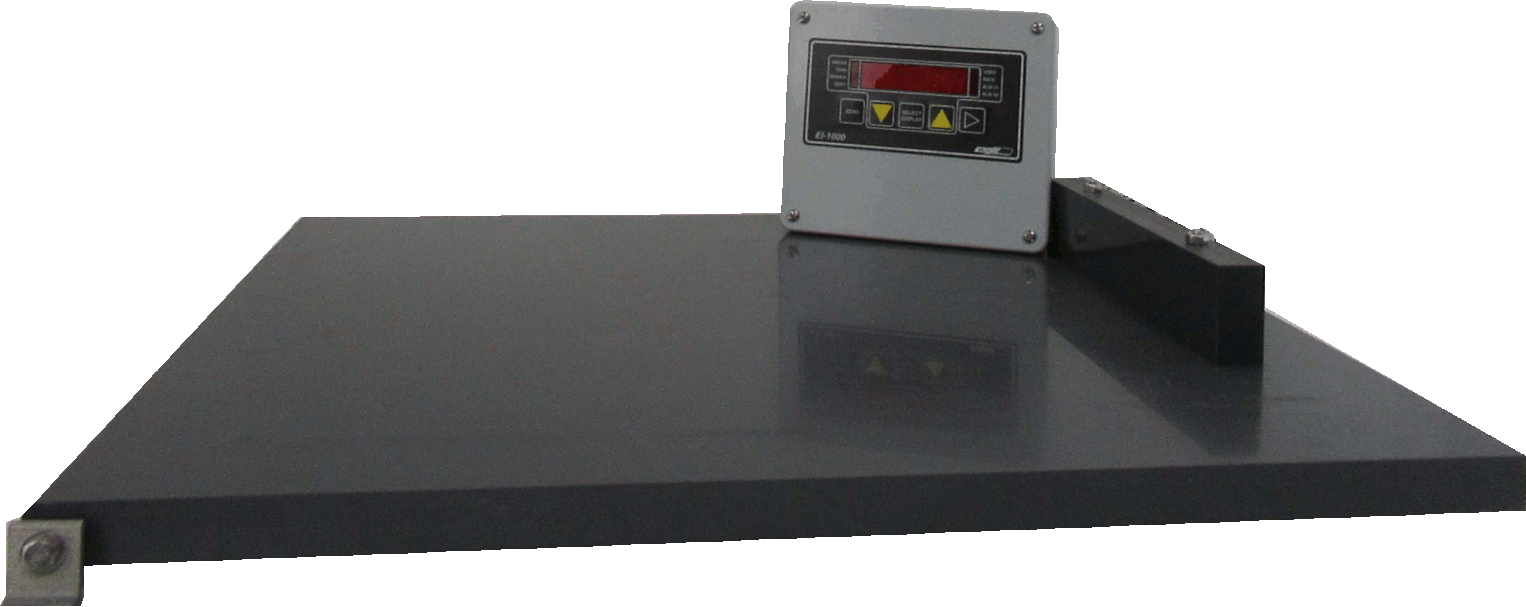

ECS-400 Economy Drum Scale


The Eagle Microsystems ECS-400 drum scale is designed to be a simple, cost-effective solution to your chemical monitoring needs. The scale and indicator package is designed for the water and wastewater treatment environment. The scale base is constructed out of chemically resistant PVC with stainless steel hardware and load cell for resistance to harsh chemical feed environments. The EI-1000 indicator included in the package is housed in a NEMA 4X fiberglass enclosure. All functions of the indicator can be accessed by the front panel without the need for opening the enclosure. LEDs indicate the operating mode and low level alarm while the 4-20 mA DC output provides a signal for remote monitoring by PLC or other equipment.


  • Rugged, simple design
  • 4-20 mA DC output standard
  • Stainless steel load cell
  • On-board diagnostics
  • Display remaining and gross weights

Download a PDF Data Sheet
Download Operating Manual(EI-1000)

Download Specifications
