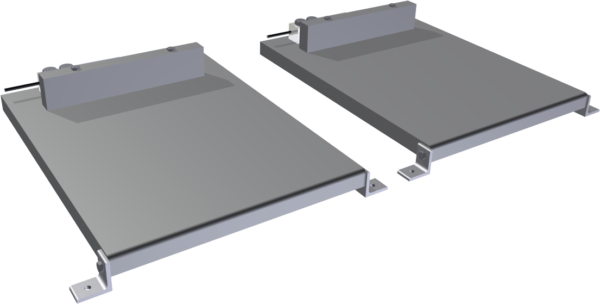

ECS 1501/02 Economy Cylinder Scale


Eagle Microsystems now offers the ECS1501 (single) and ECS1502 (dual) cylinder scales. They are specifically designed for the water and wastewater environment. The scale base is solid PVC with stainless steel hardware. A stainless steel strain gage load cell senses the weight. The electronic readout is encased in a NEMA-4X fiberglass enclosure. All standard functions are accessed from the front panel without opening the enclosure. The standard 4-20mA analog output communicates with existing or future SCADA systems.

System Features

  • Low cost
  • 4-20 mA dc output (standard)
  • Stainless steel electronic load cell
  • Large, bright LED display
  • NEMA 4X protection
  • Unique pushbutton zero
  • On-board self-diagnostics
  • Displays: Total, Remaining, Gross Weight and Rate by Weight

Download a PDF Data Sheet
Download Operating Manual

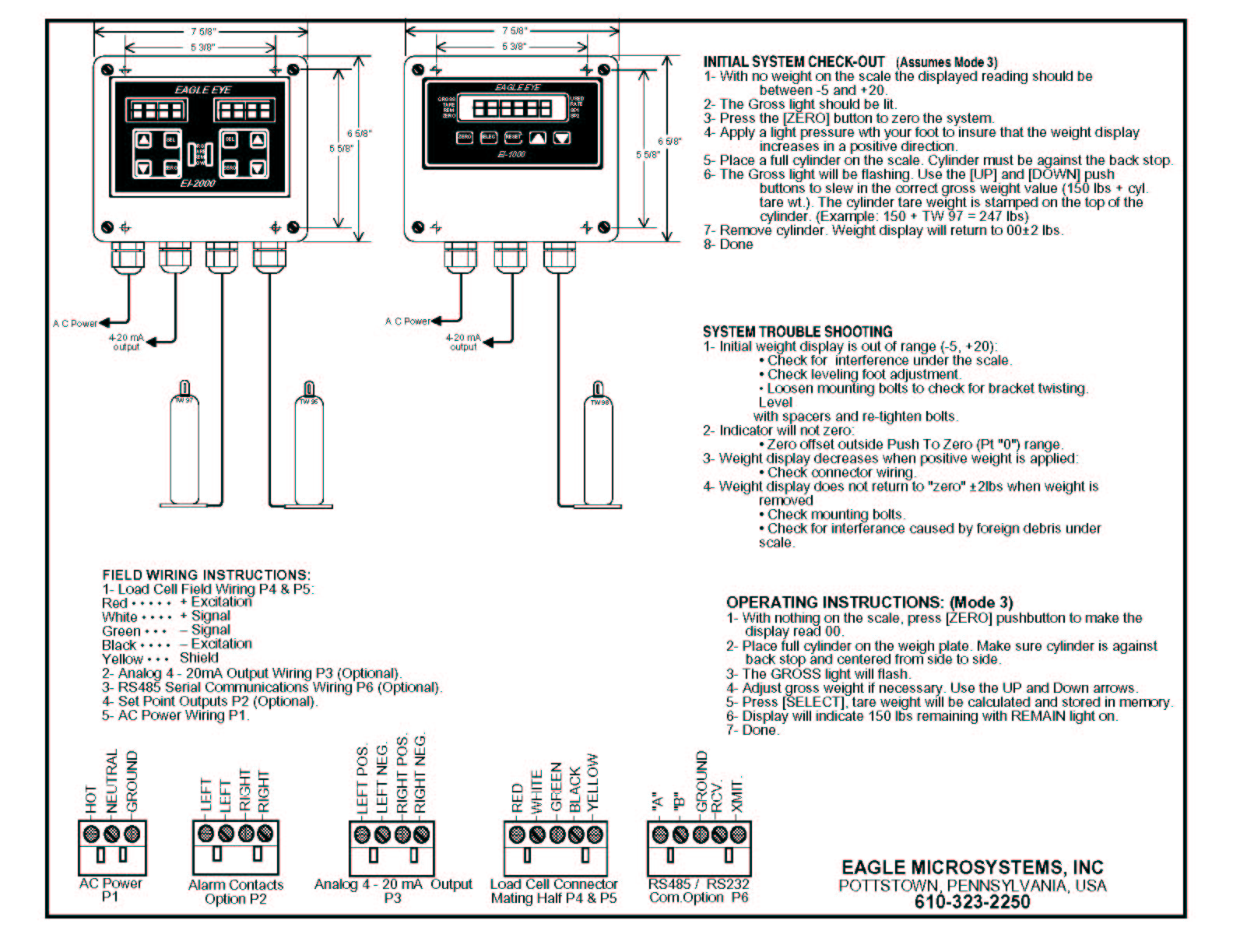

View Wiring Checkout
