HC Series Hydraulic-to-Electronic Load Cell Conversion Assembly

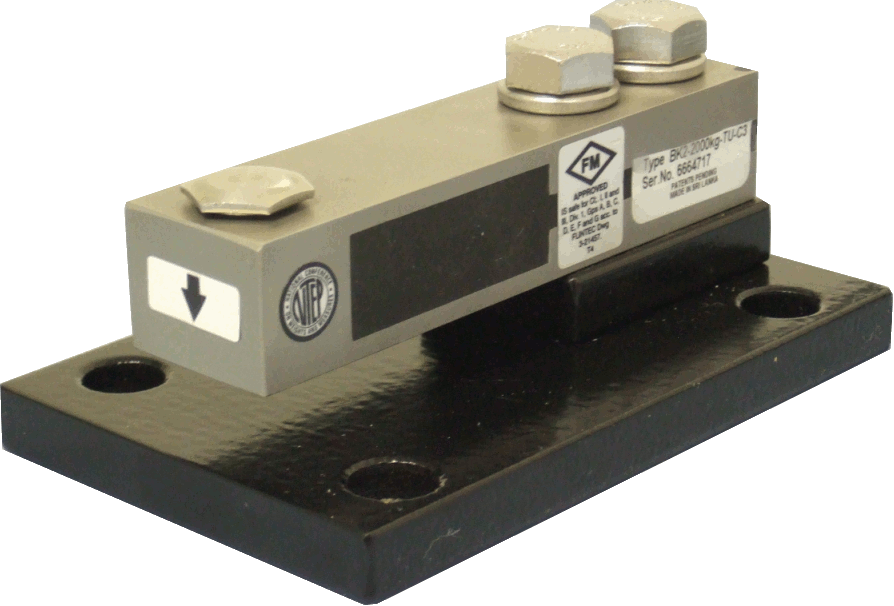

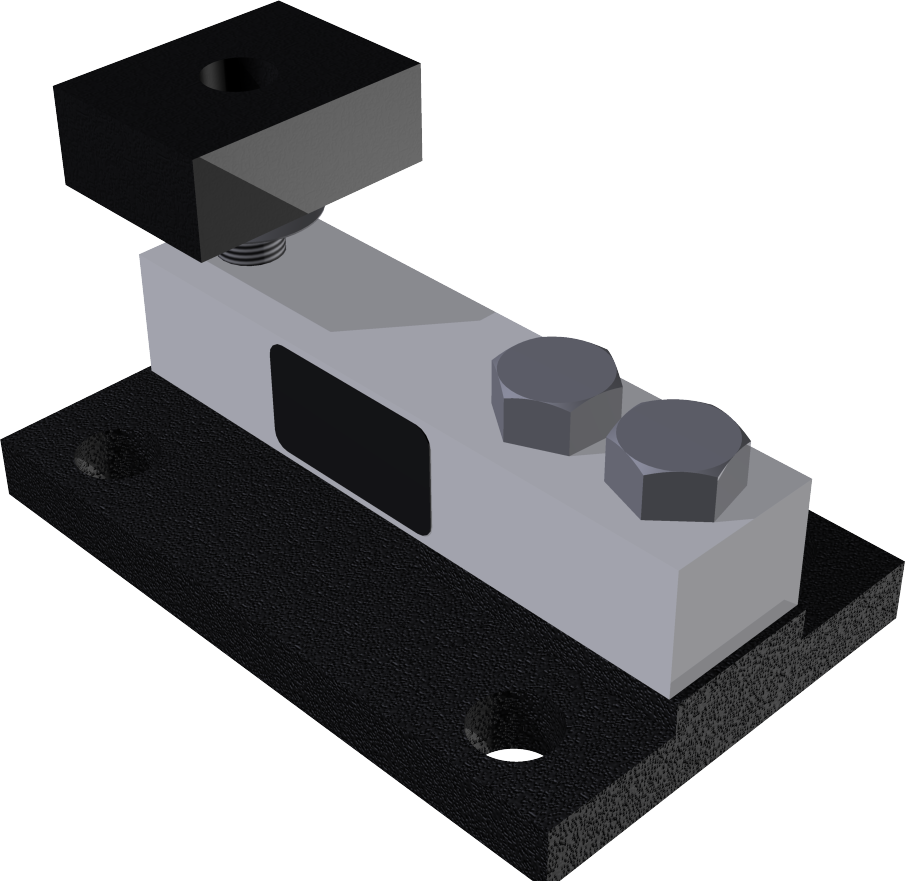

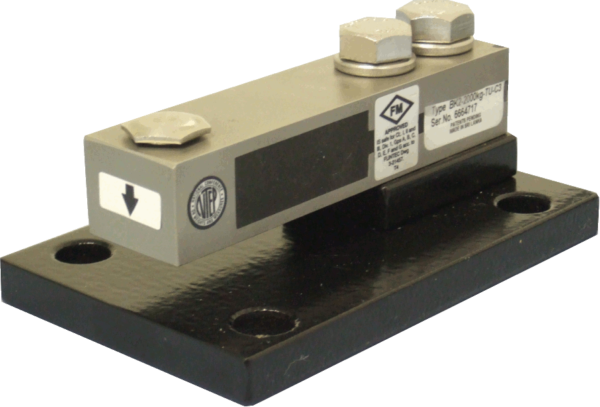

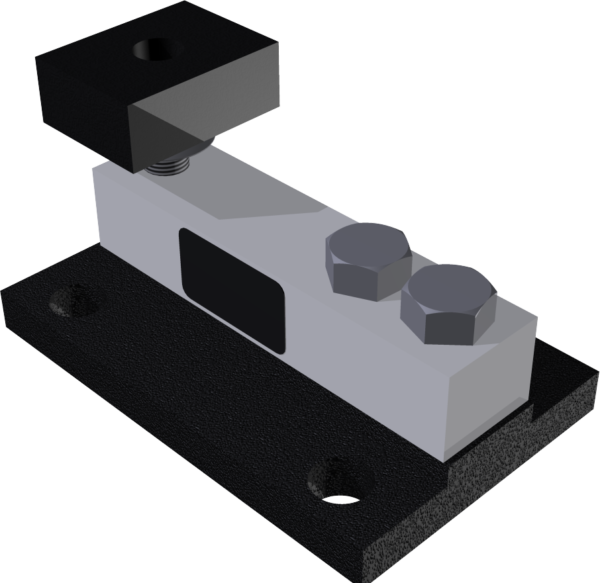

The Eagle Microsystems Model HC1000 Hydraulic-to-Electronic Conversion Assembly is an electronic load cell replacement for hydraulic load cells used in ton container scales. The assembly has no moving parts and is immune to drifting problems associated with hydraulic load cells. Used with Eagle digital instrumentation the assembly inherently provides the following basic capabilities:
• Digital displays
• Low weight alarms
• Direct interface to remote instrumentation and computers or PLCs
• Improved weighing accuracy


  • All electronic
  • No hydraulic hysteresis or drifting
  • Directly interchangeable with hydraulic load cells
  • Rugged stainless steel strain gauge load cell
  • Simple to install
  • Easy to maintain
  • Capacities for single and dual ton containers
